XCMG

XVC20-PSR-S

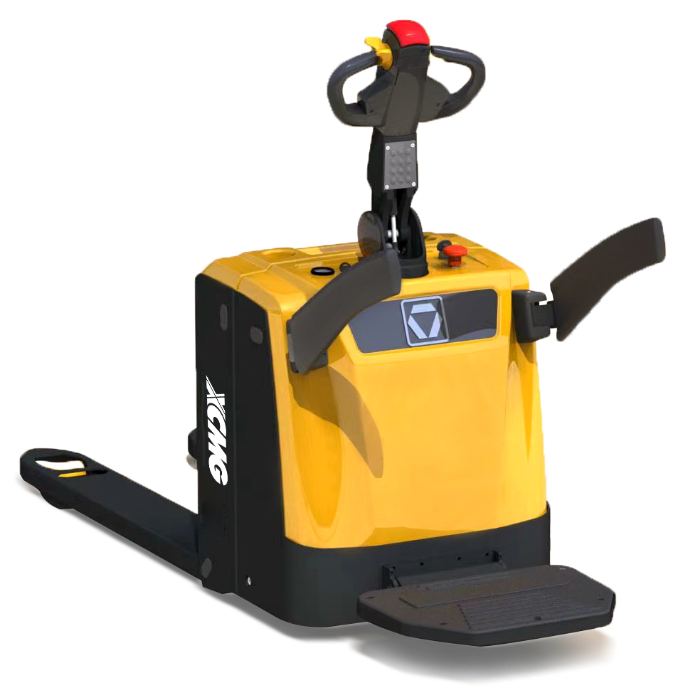

The XCMG XVC20-PSR-S is a 2.0t stand-on electric pallet truck purpose-built for medium-to-long distance, heavy-duty, high-intensity warehouse operations. Developed by XCMG Special Construction Machinery Co., Ltd., this model introduces industry-first innovations including the smallest carriage rail structure in its class, a patented self-balancing torsion beam auxiliary balance wheel device, and dual mechanical-electronic lifting limits — combining durability, operator safety, and exceptional maneuverability in a compact stand-on platform.

✅ KEY FEATURES

– Industry-First Smallest Carriage Rail Structure – Durable minimized rail design reduces energy consumption and lowers the mechanical failure rate, ensuring smooth and reliable driving performance over a long service life.

– Patented Self-Balancing Torsion Beam Auxiliary Balance Wheel – XCMG’s patented technology improves vehicle stability and eliminates floating or slipping during travel, critical for safe high-intensity operations.

– Dual Mechanical & Electronic Lifting Limits – The lifting mechanism features both mechanical and electronic upper limits working together to ensure safe, impact-free fork stop at maximum height.

– High-Strength Alloy Aluminum Die-Cast Handle Rod – Special semi-fixed structure prevents damage caused by artificially rapid return of the gas spring, extending tiller service life significantly.

– Back-Mounted Battery Cover with Hinged Link – Convenient and fast battery access for maintenance and charging without tools or complex disassembly procedures.

– Electronic Password Lock (Standard) – Standard password lock for convenient and secure fleet access management.

– Foldable Pedal Design – Pedal can be stowed or deployed, with distinct performance figures for each configuration (aisle width, turning radius, overall length).

– AC Speed Feedback Drive Control – Smooth, precise speed regulation with regenerative braking for energy recovery.

🏭 APPLICATIONS

Medium-to-long distance pallet transport, warehouse receiving and dispatch, logistics sorting operations, supermarket distribution, manufacturing material flow, and high-intensity multi-shift pallet handling requiring ride-on operator comfort.

Model: XVC20-PSR-S (2.0t)

Model & Capacity

Parameter	XVC20-PSR-S	Unit
GENERAL
Manufacturer	XCMG	—
Power Type	Electric (Battery)	—
Driving Mode	Stand-up	—
Rated Load Q	2,000	kg
Load Center Distance c	600	mm
Front Suspension x	962	mm
Wheelbase y	1,361	mm
WEIGHT
Vehicle Weight without Battery	445	kg
Full Load Axle – Drive/Load Side	918 / 1,585	kg
No Load Axle – Drive/Load Side	390 / 113	kg
WHEELS
Tyre Type	Polyurethane	—
Drive Wheel Size	ф230×75	mm
Load-Bearing Wheel Size	ф80×115	mm
Balance Wheel Size	ф115×55	mm
No. of Wheels Drive/Load	1x-2/2	—
Wheel Track – Load Side b10	390 / 500	mm
Wheel Track – Drive Side b11	500	mm
MAST & DIMENSIONS
Total Height h1	1,378	mm
Lifting Height h3	205	mm
Min. Fork Height from Ground h5	85	mm
Handle Height in Drive Position h6	1,113 / 1,439	mm
Overall Length – Pedal Stowed/Down L1	1,804 / 2,200	mm
Overall Length w/o Fork – Stowed/Down L2	666 / 1,049	mm
Total Width b1	704	mm
Fork Size l/e/s	1,150/180/50	mm
Fork Outer Width b3	570 / 680	mm
Min. Ground Clearance m1	26	mm
Aisle Width 1000×1200 – Stowed/Down	2,430 / 2,820	mm
Aisle Width 800×1200 – Stowed/Down	2,295 / 2,685	mm
Min. Turning Radius – Stowed/Down	1,628 / 2,017	mm
PERFORMANCE
Travel Speed Full/No Load	6 / 6	km/h
Lifting Speed Full/No Load	35 / 45	mm/s
Lowering Speed Full/No Load	62 / 34	mm/s
Gradeability S2-5min Full/No Load	8 / 15	%
Driving Brake	Electromagnetic	—
DRIVE & BATTERY
Drive Motor Power S2-60min	1.25	kW
Lift Motor Power S3-7.5%	1.3	kW
Steering Motor Power S2-10min	0.165	kW
Battery Type	Lead-acid	—
Battery Voltage / Capacity	24V / 180Ah	V/Ah
Battery Weight	172	kg
Drive Control	AC Speed Feedback	—
Noise Level EN12053	≤70	dB(A)

Note: Pedal stowed and pedal down configurations have different aisle width and turning radius values as shown above. Specifications subject to change without prior notice.
